Glass To Wall Spring Hinge
Home » Glass Hardware » Gate Hinges » Glass To Wall Spring Hinge

Product Category

loading

Glass To Wall Spring Hinge Glass To Wall Spring Hinge
Glass To Wall Spring Hinge Glass To Wall Spring Hinge
Glass To Wall Spring Hinge Glass To Wall Spring Hinge
Glass To Wall Spring Hinge Glass To Wall Spring Hinge

loading

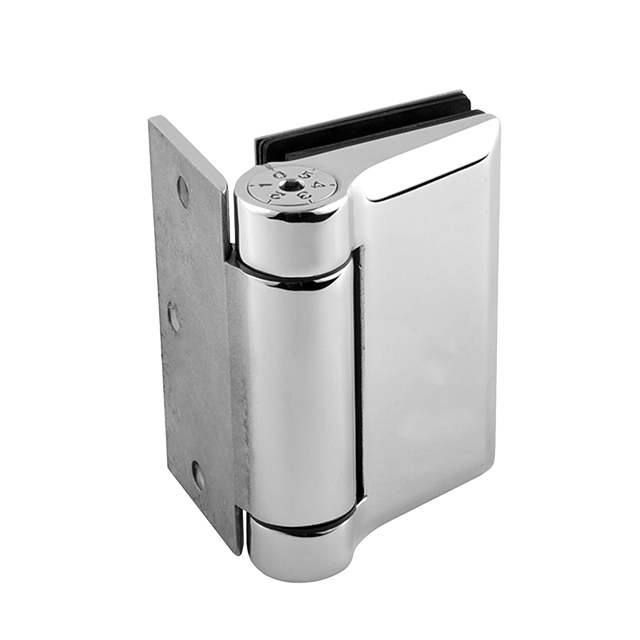

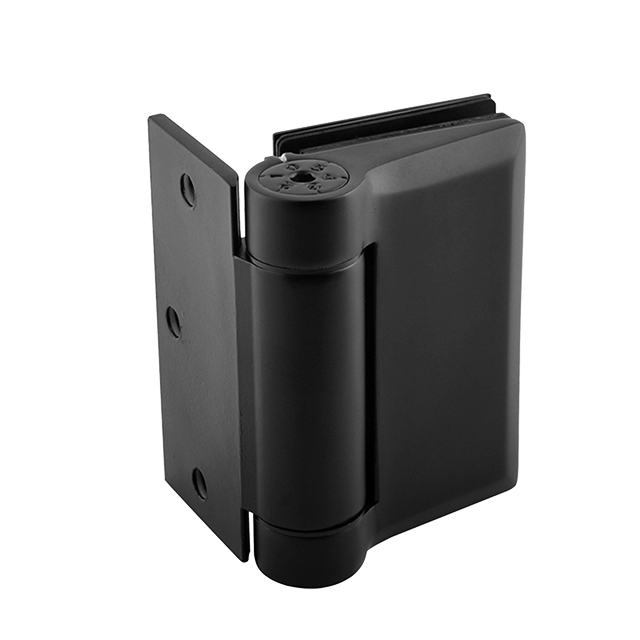

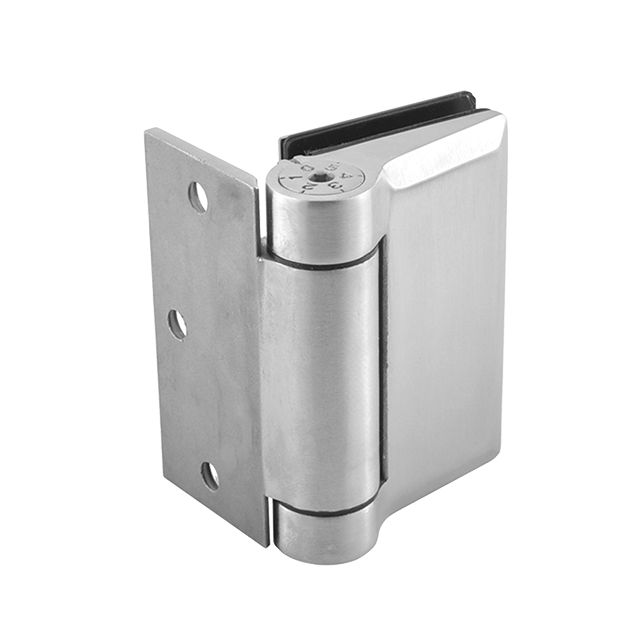

Glass To Wall Spring Hinge

Color:
Mirror
Satin
Black
Availability:
Quantity:
Inquire Add to Basket
Heavy duty spring hinge- glass to wall /square post application
Self close at any release angles
Complies with Australian standards for pool fencing
Robust and corrosion resistant construction made of duplex 2205 stainless steel
Suitable for 8mm, 10mm and 12mm glass gates
Patented easy tension adjustment (closing speed adjustment) just with an Allen key
Weight capacity: 45 kgs
Special designed oval studs and curved packers to correct the off center hole position
Installation through holes is preferred for a more rigid and non-sagging gate

  • SHC2424

  • TCT GROUP

Glass To Wall Spring Hinge Pool Gate Hinge Glass To Glass Door Hinge

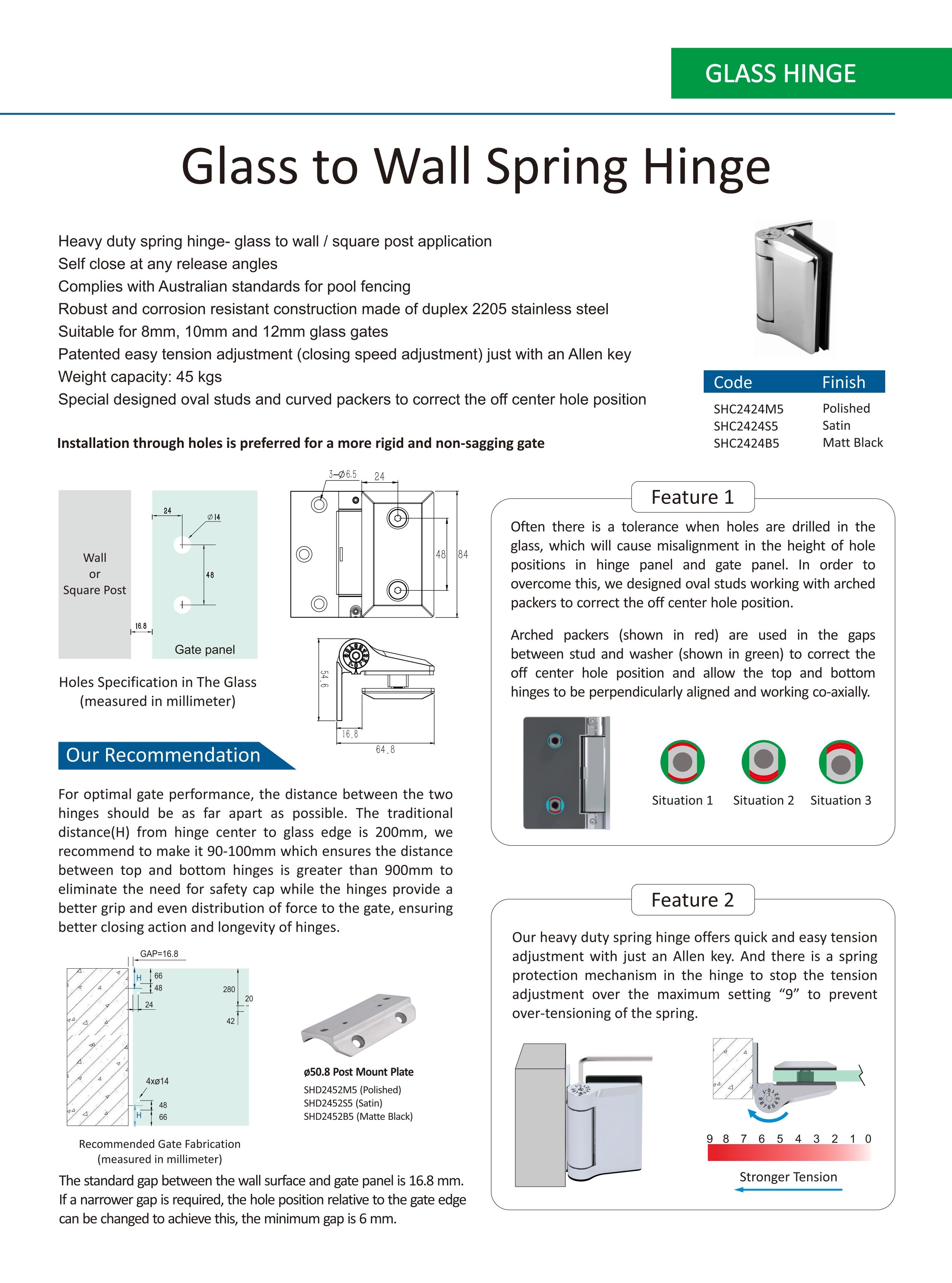

Product Description

2424
